NWSPEC

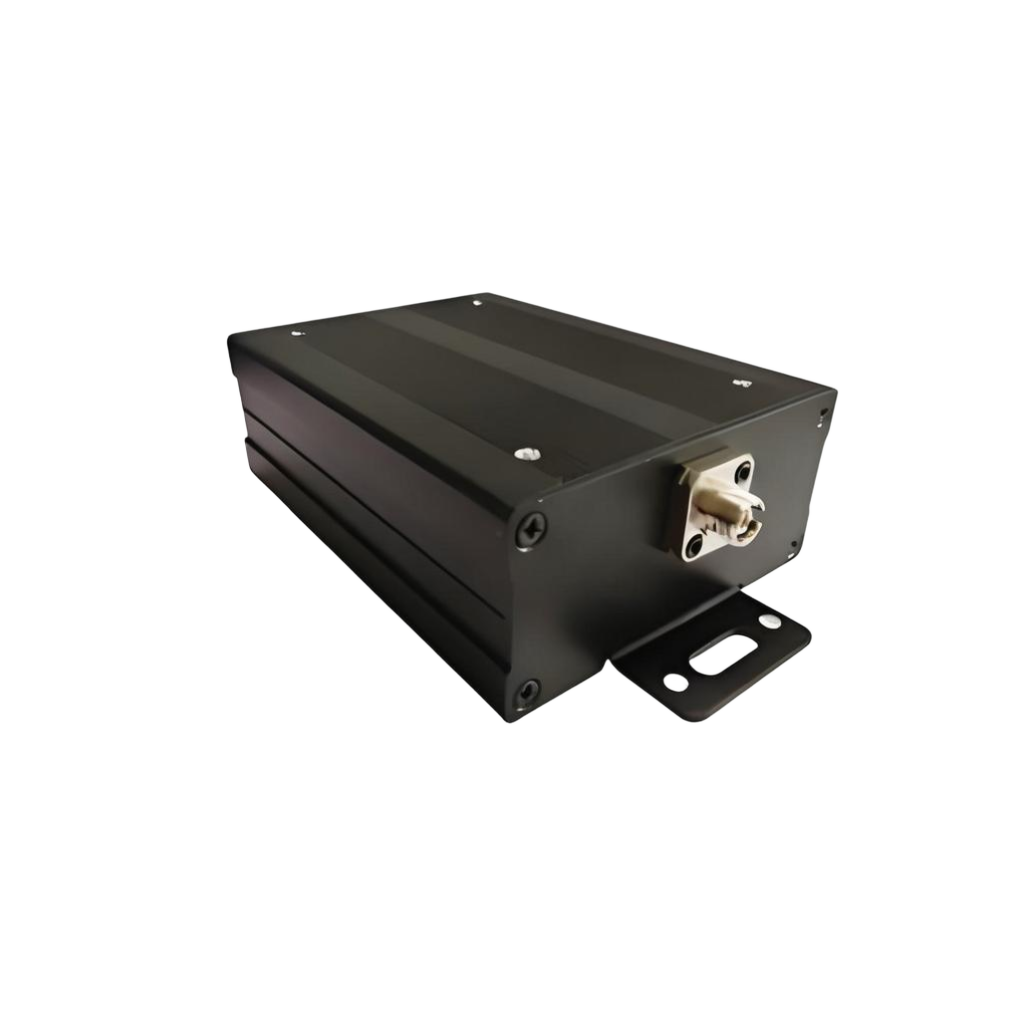

635nm Laser NW-635LD-003
635nm Laser NW-635LD-003
Couldn't load pickup availability
Features
635nm laser with fiber coupling output
Three operating modes: CW, pulse and external trigger
Easily integrated with spectrometers and other devices
Excellent stability
Default fiber interface is SMA905, other fiber interfaces such as FC etc. are optional
Applications
Instrument lighting
Spectral analysis
Material inspections
Online inspections
R& D in science and technology
| Items | Specifications | Units |
| Fiber Connector | SMA905 or FC | Upon request |
| Center Wavelength | 635 | nm |
| Output Power | 0–6 | mW |
| Output Stability | 0.5 | % |
| Threshold Current | 20 to 40 | mA |
| Power Supply | DC5/0.5 | V/A |
| Communication | USB | |
| Cooling Mode | Built-in TEC, with an outside heat sink | |
| Dimensions | 135x75x35 | mm |
| Weight | 300 | g |
| Expected Lifetime | >10,000 | hrs |
| Laser Operating Temperature | 20–30 | °C |
| Storage Temperature | –20–70 | °C |
