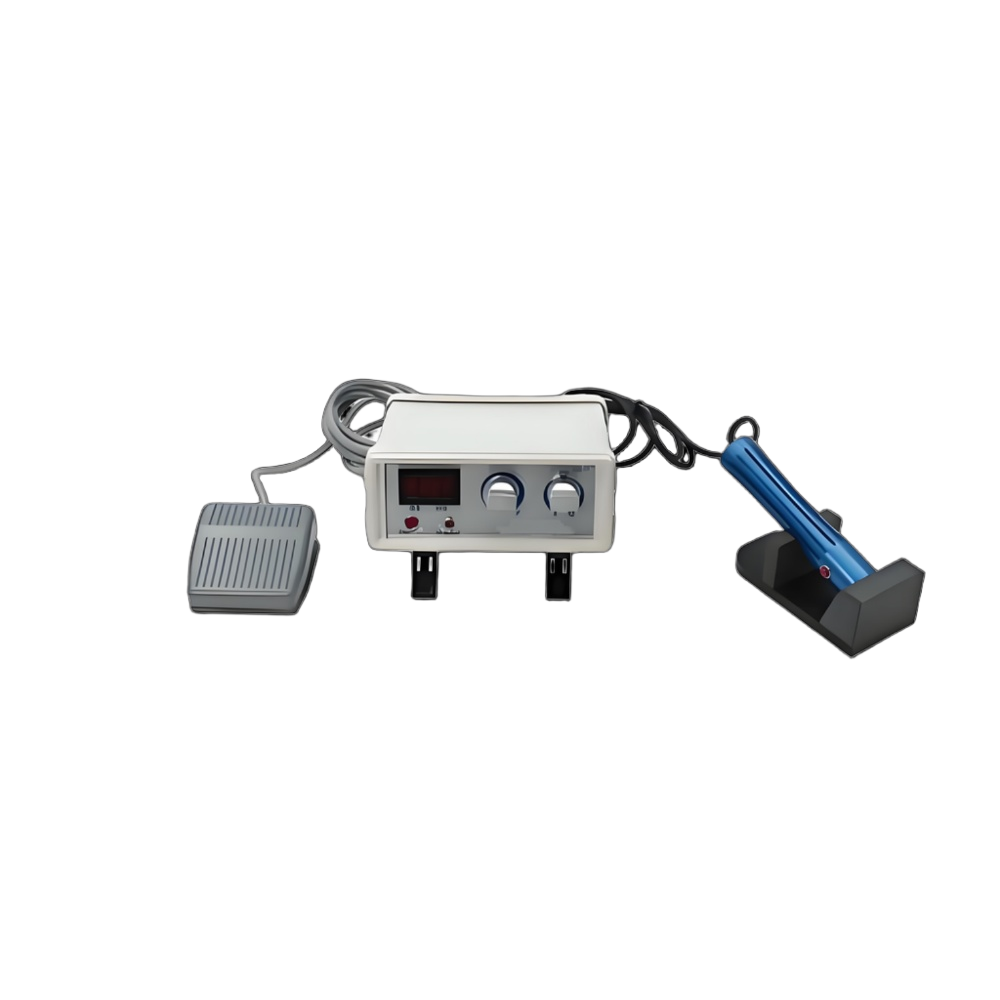

UV-LED Curing Lamp NW-UVLA-3W
UV-LED Curing Lamp NW-UVLA-3W
Couldn't load pickup availability
Features
Torch-shaped UV LED light curing lamp
Nichia UV LED employed
0-100% adjustable
UV light intensity UV light output with efficient coupling and stable output
Convenient hand-held operation
Efficient thermal design
Three different switching modes Can be used as a universal UV light source
Applications
UV curing
Instrument lighting
Spectral analysis Material inspection
Online inspections
R& D in science and technology
| Items | Specifications | Units |
| Wavelength | 365 ± 5 | nm |
| Working Distance | 20 | mm |
| Focusing Spot | ∅5 | mm |
| Power Supply | AC220/0.1 | V/A |
| Switching Mode | 1) By a button switch assembled on the UV LED body; 2) By a timing switch on the power supply panel; 3) Or by a foot controlled pedal. | |
| Timer | 1)1–30s, 2) 1–30min, 3) CW | |
| Expected Lifetime | 20,000 | hrs |
| Cooling | Radial heat sinks on the UV LED light source’s body | |
| Dimensions of the UV LED Light Source’s Body | ∅28x140 | mm |
| Weight of the UV LED Light Source’s Body | ~155 | g |
| Power Supply Dimensions | 144x165x67 | mm |
| Power Supply Weight | ~1050 | g |
