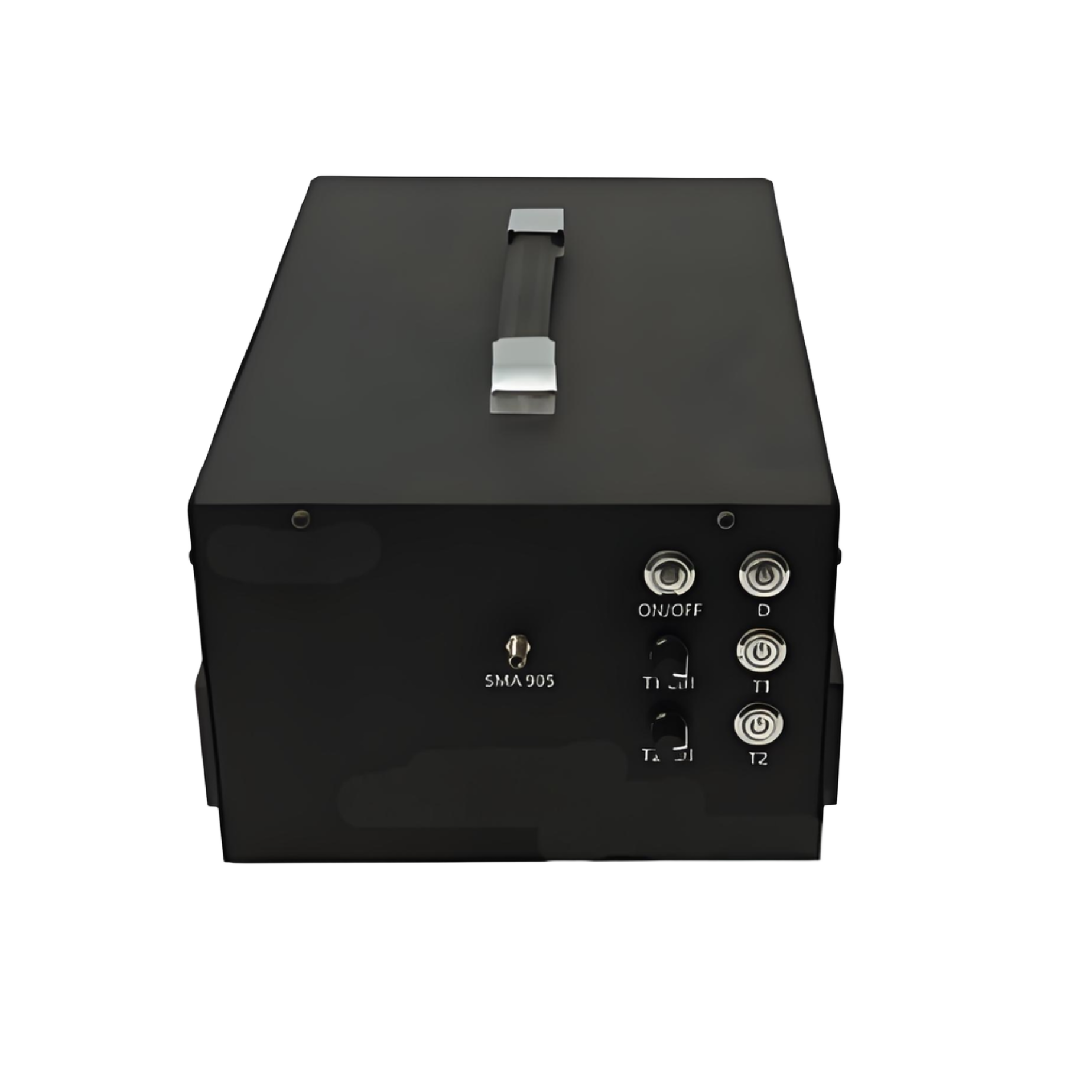

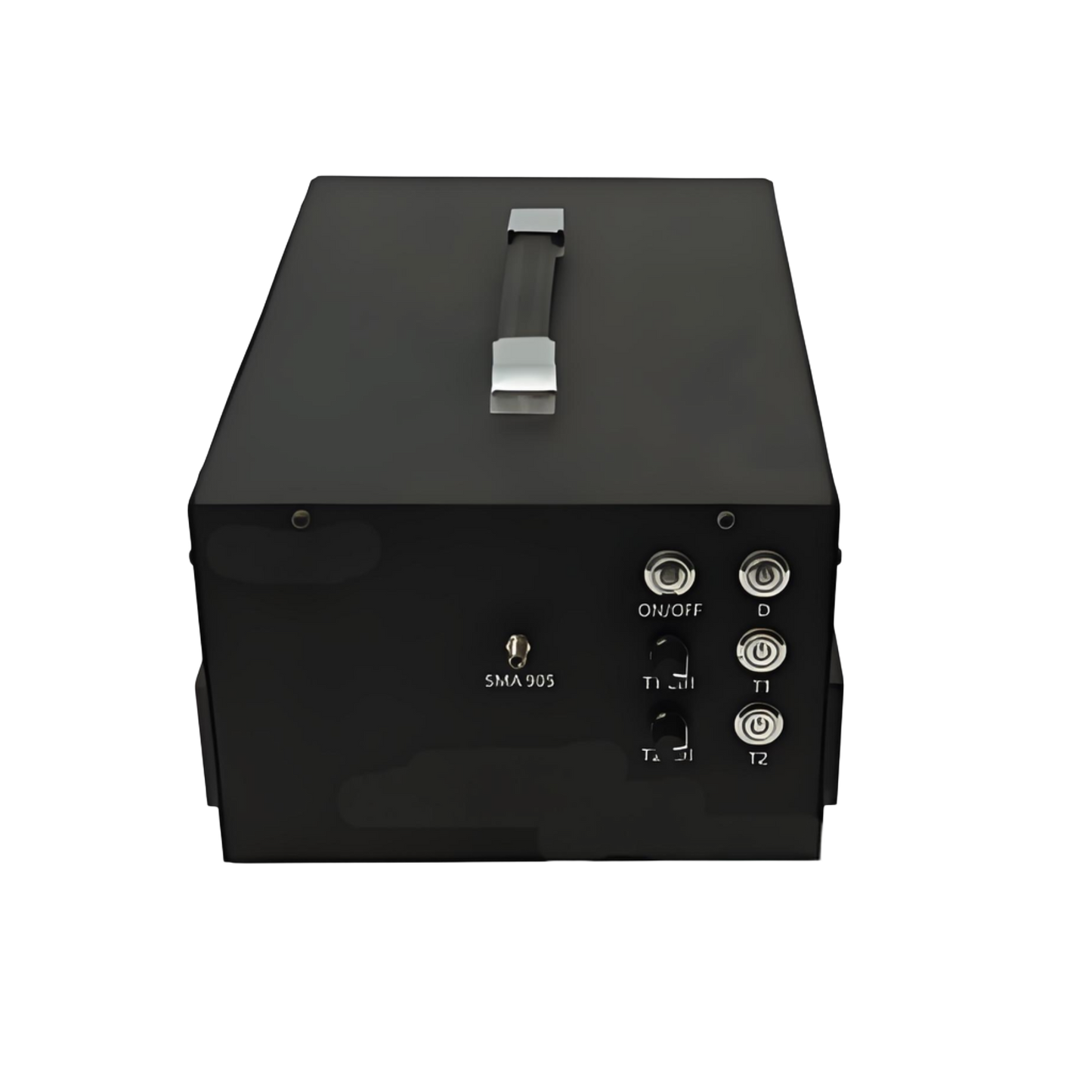

Nir Enhanced Broad Band Light Source NW-D2T-V01
Nir Enhanced Broad Band Light Source NW-D2T-V01
Couldn't load pickup availability
Features
A broad spectrum of 200nm to 2500nm (depending on the filter used) equalized with near-infrared light enhancement
Combines with a CCD or CMOS spectrometer for wide dynamic range and broadband spectral analysis without saturating the detector, effectively improving signal-to-noise ratio of the near- infrared band
Adjust the output intensity of two tungsten lamps using knobs and adjust the output intensity of the deuterium lamp using filters
Applications
Instrument lighting
Chemical industry
Jewelry inspection
Optical coating inspection
Glass inspection
Auto dimming film inspection
Mobile phone mask inspection
R& D in science and technology
| Items | Deuterium Lamp | Tungsten Lamp1 | Tungsten Lamp2 |
| Wavelength Range | 300–500nm depending on the filter used | 400–2500nm depending on the filter used | 850–2500nm depending on the filter used |
| Light Output Connector | SMA905 fiber connector | ||
| Output Stability | 0.16% | 0.14% | 0.22% |
| Tungsten Lamps Adjustable Range | 0–100% | ||
| Warm-up Time | 20min | 20min | 20min |
| Lamp Power | Anode: max75VDC/300mA Filament operation: 1VDC, 1.8A Filament warm-up: 2.5VDC, 4A | 20W/12V | 20W/12V |
| Lamp Lifetime | 2000hrs | 2000hrs | 2000hrs |
| Current Drift | ± 0.05%/hr after 30min | — | — |
| Voltage Drift | — | <0.5% | <0.5% |
| Color Temperature | — | 3000K | 3000K |
| Power Supply | AC220V/1.2A | ||
| Dimensions | 322mm x 203mm x 115mm | ||
| Weight | ~4 Kg | ||
| Operating Temperature | 0–45 ℃ | ||
